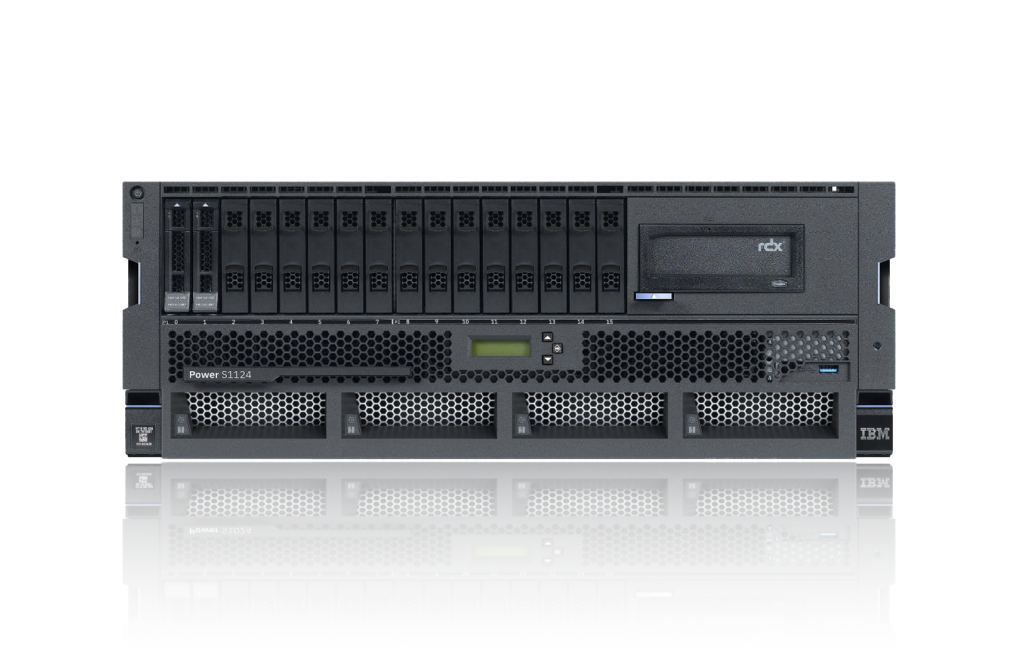

IBM POWER11 S1124 & L1124
Efficiently Scale Out Your Data-Intensive Applications
The IBM Power S1124 and L1124 systems are powerful scale-out servers designed to deliver exceptional throughput for your most demanding applications.
The Power S1124 supports IBM AIX, IBM i, and Linux, making it a flexible choice for application and database servers. The Power L1124 is tailored specifically for Linux environments, providing a highly cost-effective platform for open-source databases and Red Hat OpenShift.
Both models leverage the Power11 DCM processor and a flat CPU interconnect to deliver superior scalability, with up to 25% more core capacity than the previous generation.
KEY POINTS TO CONSIDER
The enterprise class compute platform with massive I/O and storage throughput
These 4U servers provide a dense compute platform with up to 60 cores per system and up to 8 TB of DDR5 memory, which offers up to 50% more bandwidth than the previous generation.
Enterprise-class RAS features, uncommon in scale-out systems, are standard, including Spare Cores for increased availability and Active Memory Mirroring. With ten PCIe slots (eight of which are Gen5 capable) and capacity for up to 16 internal NVMe drives, the S1124/L1124 provides massive I/O and storage throughput.
The entire system is protected with Quantum-safe encryption for secure boot and workload migration.
IBM Power11 S1124 & L1124 Key Features
Efficient Consolidation
Consolidate workloads from numerous older Power7 or Power8 servers onto a single, efficient 4U system, reducing your operational costs.
Modernised Technology
Modernise your infrastructure with access to PCIe Gen5, high-bandwidth DDR5 memory, and the latest advanced hardware security features.
Hybrid Cloud Flexibility
Run a mix of AIX, IBM i, and Linux applications that can be moved seamlessly to and from the PowerVS cloud.
Optimised for Containerisation
The L1124 model offers a cost-optimised platform for Red Hat OpenShift, creating a consistent hybrid container environment.
Embedded Quantum-Safe Security
Embed next-generation security into the hardware with Quantum-safe cryptography, designed to protect against threats from future quantum computers.
Secure System Operations
Protect foundational system operations, including the secure boot process and Live Partition Migration, with a future-proof security standard.
IBM Power11 Systems at a Glance
This table provides a side-by-side comparison of the new IBM Power11 server models to help you identify the right system for your specific needs.
Feature | IBM Power E1180 | IBM Power E1150 | IBM Power S1124 / L1124 | IBM Power S1122 / L1122 |
Primary Use Case | Large-scale mission-critical databases & enterprise applications | Large data & memory-intensive workloads, private cloud | Data-intensive scale-out, SAP HANA, Analytics | Entry enterprise applications, ROBO, Edge computing |
System Form Factor | Up to four 5U system nodes + 2U System Control Unit | 4U rack-mount server | 4U rack-mount server | 2U rack-mount server |
Processor Type | Power11 Single-Chip Module (SCM)999 | Power11 Dual-Chip Module (DCM) | Power11 Dual-Chip Module (DCM) | Power11 DCM or entry eSCM |
Max Sockets | 16 (4 per system node) | 4 | 2 | 2 |
Max Cores | 256 | 120 (30 cores/socket) | 60 (30 cores/socket) | 60 (30 cores/socket) |
Max Memory | 64TB DDR5 | 16TB DDR5 | 8TB DDR5 | 4TB DDR5 |
Max Internal NVMe | 8x U.2 (15mm) across 4 nodes25 | 10x U.2 (up to 153 TB) | 16x U.2 (up to 244.8 TB) | 8x U.2 (up to 122.4 TB) |
PCIe Slots | 32 (8 per node), Gen5 support | 11 total (8 Gen5 capable) | 10 FHHL (8 Gen5 capable) | 10 HHHL (8 Gen5 capable with DCM) |
Key RAS Features | 99.9999% availability, Spare Cores (4/drawer), Active Memory Mirroring | Spare Cores (2/socket), Active Memory Mirroring | Spare Cores (2/socket), Active Memory Mirroring | Spare Cores (on DCMs), Active Memory Mirroring |
AI Acceleration | Optional IBM Spyreâ„¢ I/O Drawer | Optional IBM Spyreâ„¢ I/O Drawer | In-core MMA | In-core MMA |
Upgrade Path | In-place from Power E1080 (preserves serial number) | In-place from Power E1050 (preserves serial number) | Workload migration | Workload migration |
Request pricing | Request pricing | Request pricing | Request pricing |
UPGRADE YOUR DATA CENTRE WITH THE IBM POWER E1150
Why Choose Covenco for IBM Power?
At Covenco, we are a qualified IBM Gold business partner, possessing over 35 years of deep knowledge and experience in IBM systems. This long-standing expertise means we provide more than just a server – we deliver complete, end-to-end solutions tailored to your business.
Our team consists of technicians and engineers who are individually qualified in all aspects of IBM Power, including migration, replication, backup, and installation. They ensure that your transition to Power11 is smooth, secure, and efficient, whether you are consolidating a complex legacy estate or deploying new, cloud-native applications.
From initial consultation to final delivery, our dedicated account managers help you to specify the perfect system for your needs. We handle every detail, from licensing and support contracts to software integration, ensuring you receive a comprehensive solution that drives business success.
Upgrade your IBM Power systems with Covenco. We can run all the necessary IBM Power TCO calculations to establish precisely if an upgrade is the right decision for your organisation, right now.
We provide IBM Power Systems users with real-world, transparent calculations that go far beyond list prices. Get in touch our team of IBM Power experts to find the perfect server configuration for you.
