IBM Power S1122 and L1122 at Covenco

This 2-socket Power11 system is available in a 2U rack-mounted chassis from Covenco, offering up to 50% more core capacity and enterprise capabilities in a compact and affordable package.

For a FREE proposal and TCO report, contact us today at enquiries@covenco.com or call +44 (0)1753 732 000.

Request a Proposal

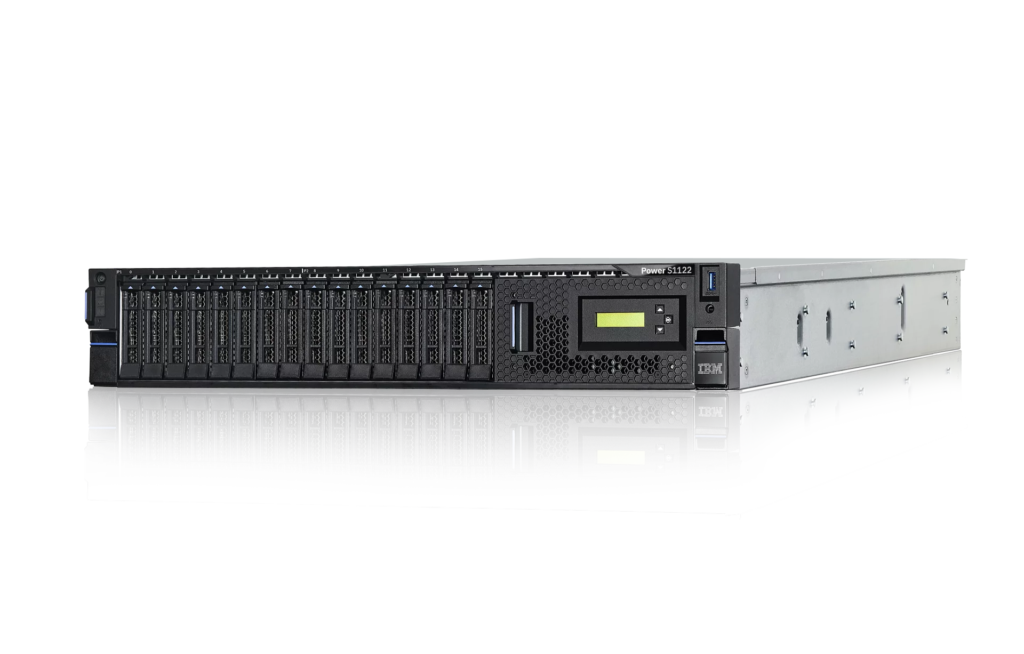

IBM POWER11 S1122 & L1122

Compact & Affordable 2U Power11 Performance

The IBM Power S1122 & L1122 servers deliver an unprecedented level of performance and security in a compact 2U form factor.

For the first time, this model family offers a choice of processors: the powerful Dual-Chip Module (DCM) for maximum throughput, or the cost-effective entry Single-Chip Module (eSCM) for smaller workloads.

The Power S1122 is a versatile server for core business applications on AIX, IBM i, and Linux, making it ideal for small and medium enterprises – while the Power L1122 provides a Linux-only platform perfect for edge computing and remote office deployments.

Request a Proposal See retail pricing at IBM.com

KEY POINTS TO CONSIDER

Enterprise-class reliability, expansion and security in a 2U form factor.

These systems provide a low-cost entry point to the advanced features of the Power11 architecture. The new processors offer up to 60 cores, a 50% increase on the prior generation, in a power-efficient 2U chassis.

Enterprise-class reliability features are standard, including spare cores on all DCM processors and Active Memory Mirroring for higher uptime. The systems boast impressive expansion capabilities, with ten PCIe slots and up to 8 internal NVMe drives for high-speed storage. All data is protected by default with main memory encryption and new Quantum-safe security for boot and workload migration.

Request a Proposal

IBM Power11 S1122 and L1122 Key Features

Efficient Modernisation

Replace multiple ageing Power7, Power8, and Power9 systems with a single 2U Power11 server for immediate operational savings.

Legacy Application Migration

Gain a fast and efficient platform for migrating legacy applications without a complete application rewrite, using modern I/O capabilities.

Hybrid Cloud Availability

Run multiple, isolated AIX, IBM i, and Linux virtual machines, mirroring the stack available in the PowerVS public cloud.

Consistent Container Platform

The L1122 Linux model is perfectly suited for building a consistent Red Hat OpenShift container platform from the edge to the core.

Future-Proof Security

Harden your systems against future threats from quantum computers with Quantum-safe cryptography, even at the entry-level.

Secure System Foundations

Protect the secure boot process and Live Partition Migrations with advanced security integrated at the firmware level.

IBM Power11 Systems at a Glance

This table provides a side-by-side comparison of the new IBM Power11 server models to help you identify the right system for your specific needs.

Feature	IBM Power E1180	IBM Power E1150	IBM Power S1124 / L1124	IBM Power S1122 / L1122
Primary Use Case	Large-scale mission-critical databases & enterprise applications	Large data & memory-intensive workloads, private cloud	Data-intensive scale-out, SAP HANA, Analytics	Entry enterprise applications, ROBO, Edge computing
System Form Factor	Up to four 5U system nodes + 2U System Control Unit	4U rack-mount server	4U rack-mount server	2U rack-mount server
Processor Type	Power11 Single-Chip Module (SCM)999	Power11 Dual-Chip Module (DCM)	Power11 Dual-Chip Module (DCM)	Power11 DCM or entry eSCM
Max Sockets	16 (4 per system node)	4	2	2
Max Cores	256	120 (30 cores/socket)	60 (30 cores/socket)	60 (30 cores/socket)
Max Memory	64TB DDR5	16TB DDR5	8TB DDR5	4TB DDR5
Max Internal NVMe	8x U.2 (15mm) across 4 nodes25	10x U.2 (up to 153 TB)	16x U.2 (up to 244.8 TB)	8x U.2 (up to 122.4 TB)
PCIe Slots	32 (8 per node), Gen5 support	11 total (8 Gen5 capable)	10 FHHL (8 Gen5 capable)	10 HHHL (8 Gen5 capable with DCM)
Key RAS Features	99.9999% availability, Spare Cores (4/drawer), Active Memory Mirroring	Spare Cores (2/socket), Active Memory Mirroring	Spare Cores (2/socket), Active Memory Mirroring	Spare Cores (on DCMs), Active Memory Mirroring
AI Acceleration	Optional IBM Spyre™ I/O Drawer	Optional IBM Spyre™ I/O Drawer	In-core MMA	In-core MMA
Upgrade Path	In-place from Power E1080 (preserves serial number)	In-place from Power E1050 (preserves serial number)	Workload migration	Workload migration
	Request pricing	Request pricing	Request pricing	Request pricing

UPGRADE YOUR DATA CENTRE WITH THE IBM POWER11 S1122/L1122

Why Choose Covenco for IBM Power?

Covenco is an IBM Gold business partner, possessing over 35 years of deep knowledge and experience in IBM systems. This long-standing expertise means we provide more than just a server – we deliver complete, end-to-end solutions tailored to your business.

Our team consists of technicians and engineers who are individually qualified in all aspects of IBM Power, including migration, replication, backup, and installation. We handle every detail, from licensing and support contracts to software integration, ensuring you receive a comprehensive solution that drives business success.

Contact the Covenco IBM Power team to specify the perfect server configuration for your needs.

Request a Proposal
