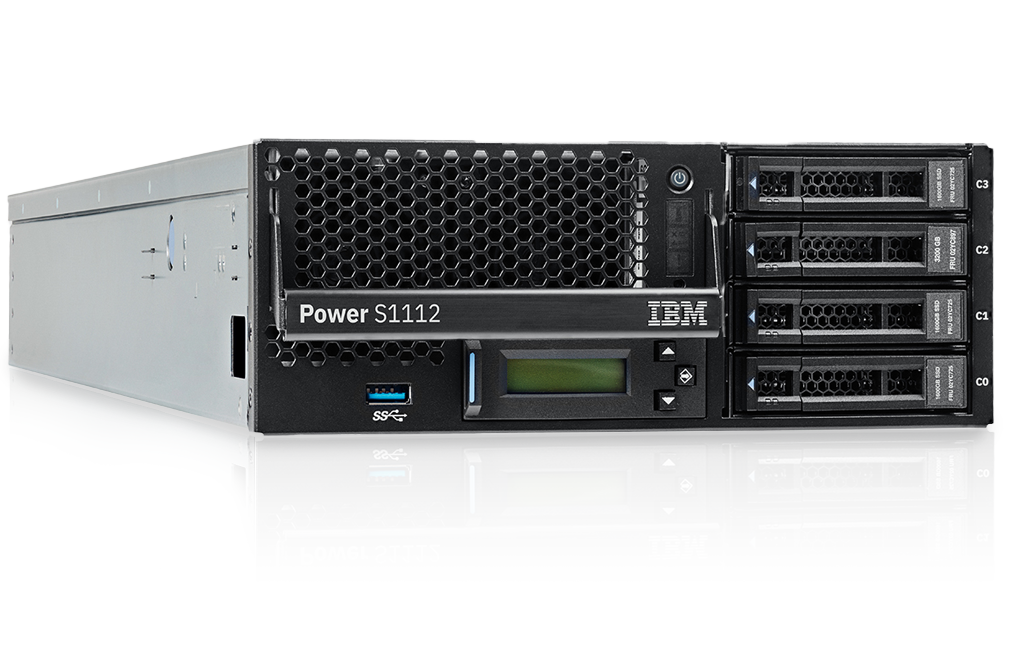

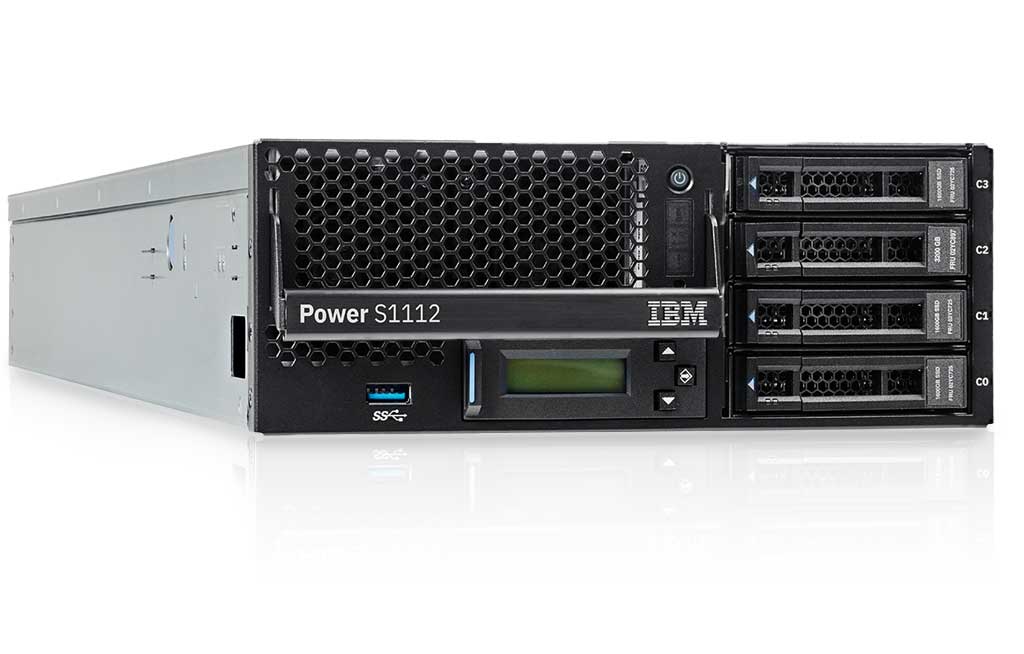

IBM POWER11 S1112 Rack & Tower
Right-Sized Power11 Performance, Without Platform Compromise
The IBM Power S1112 is IBM’s entry point into the Power11 generation, built for organisations that need enterprise-grade reliability and security in space-constrained environments such as branch offices, retail sites, manufacturing floors, and finance locations.
The S1112 is the only Power11 server available within the IBM i P05 software tier, making it a natural upgrade path for existing Power S814 and Power S914 users who want to modernise without triggering a step-change in software licensing costs. It supports AIX, IBM i, and Linux on the same chassis, with rack-mounted and desk-side tower format options for flexible installation.
KEY POINTS TO CONSIDER
Modernise entry and edge workloads without a licensing penalty
IBM Power S1112 delivers up to 2x better core performance than the Power S914, and up to 3x better core performance than the Power S814, allowing organisations to increase application performance without triggering higher per-core software licensing costs – a common concern when moving off older Power8 and Power9 entry systems.
The system is built around a single Power11 entry Single-Chip Module (eSCM), available in 4-core or 10-core configurations, and is available as a 2U rack drawer (machine type 9242-21B) or tower (9242-21T) to suit different branch and edge environments.
The system supports up to 512 GB of DDR5 DDIMM memory and up to 12.8 TB of NVMe storage across four internal NVMe U.2 bays, giving IT teams a compact platform that still handles data-intensive applications with the bandwidth and reliability expected of enterprise Power infrastructure. IBM i environments run within the P05 software tier (up to 4 cores and 64 GB of memory), while remaining system resources can be allocated to AIX, Linux, and AI workloads on the same server.
Every S1112 is protected with quantum-safe cryptography for secure boot and firmware-level virtualisation, extending Power’s enterprise security posture down to the smallest system in the Power11 range.
Is the S1112 Right for You?
Choosing the Right Entry Point into Power11
The Power S1112 is purpose-built for a specific class of deployment: single-socket, space-constrained environments such as branch offices, retail sites, and near-edge locations, or straightforward upgrades from older one-socket Power S814 and Power S914 systems.
If your requirement is a single, compact system for a branch, remote site, or a smaller IBM i P05-tier workload, the S1112 is likely the most cost-effective route into Power11.
If you are running data-intensive, multi-socket workloads across retail, manufacturing, or financial services environments – SAP HANA, large databases, container platforms, or consolidation from multiple older Power7/Power8 systems – the IBM Power S1124 & L1124 scale-out servers are the better starting point for most Covenco customers, offering up to 60 cores, 8 TB of memory, and significantly greater I/O headroom.
Not sure which fits your environment? Our IBM Power specialists can review your current workload profile and licensing position and recommend the right-sized system, whether that’s the S1112, the S1124/L1124, or a wider Power11 configuration.
IBM Power11 S1112 Key Features
Right-Sized Power11 Performance
Deliver up to 2x the core performance of the Power S914 and 3x that of the Power S814, extending application headroom without a corresponding rise in software licensing costs.
Enterprise Memory and Storage
Support data-intensive applications with up to 512 GB of DDR5 DDIMM memory and up to 12.8 TB of NVMe storage, delivering higher bandwidth and faster local data access than the previous generation.
Extend Power to the Edge
Deploy enterprise-grade infrastructure into space-constrained branch, retail, manufacturing, and banking locations with flexible rack-mounted or desk-side tower installation options.
AI-Ready by Design
Accelerate AI inferencing at the edge using on-chip Matrix Math Acceleration (MMA) technology, keeping data-local insights fast and low-latency.
Embedded Quantum-Safe Security
Protect critical entry and edge workloads with embedded quantum-safe cryptography, firmware-level virtualisation, and Power’s proven reliability, availability, and serviceability (RAS).
Flexible IBM i Workload Expansion
Run IBM i within the P05 software tier (up to 4 cores and 64 GB of memory) while using additional system resources for AIX, Linux, and AI workloads on the same server.
IBM Power11 Systems at a Glance
This table provides a side-by-side comparison of the new IBM Power11 server models to help you identify the right system for your specific needs.
| Feature |
|
|
|
|
|
| Primary Use Case | Large-scale mission-critical databases & enterprise applications | Large data & memory-intensive workloads, private cloud | Data-intensive scale-out, SAP HANA, Analytics | Entry enterprise applications, ROBO, Edge computing | Entry enterprise applications, branch/remote offices, near-edge computing |
| System Form Factor | Up to four 5U system nodes + 2U System Control Unit | 4U rack-mount server | 4U rack-mount server | 2U rack-mount server | 2U rack drawer or tower |
| Processor Type | Power11 Single-Chip Module (SCM)999 | Power11 Dual-Chip Module (DCM) | Power11 Dual-Chip Module (DCM) | Power11 DCM or entry eSCM | Power11 entry Single-Chip Module (eSCM) |
| Max Sockets | 16 (4 per system node) | 4 | 2 | 2 | 1 |
| Max Cores | 256 | 120 (30 cores/socket) | 60 (30 cores/socket) | 60 (30 cores/socket) | 10 (4 or 10-core eSCM options) |
| Max Memory | 64TB DDR5 | 16TB DDR5 | 8TB DDR5 | 4TB DDR5 | 512GB DDR5 (64GB for IBM i P05 tier) |
| Max Internal NVMe | 8x U.2 (15mm) across 4 nodes25 | 10x U.2 (up to 153 TB) | 16x U.2 (up to 244.8 TB) | 8x U.2 (up to 122.4 TB) | 4x U.2 (up to 12.8 TB) |
| PCIe Slots | 32 (8 per node), Gen5 support | 11 total (8 Gen5 capable) | 10 FHHL (8 Gen5 capable) | 10 HHHL (8 Gen5 capable with DCM) | 4 in system unit (2x Gen4 x8, 2x Gen4 x16); expandable via up to 2 optional Gen4 I/O drawers |
| Key RAS Features | 99.9999% availability, Spare Cores (4/drawer), Active Memory Mirroring | Spare Cores (2/socket), Active Memory Mirroring | Spare Cores (2/socket), Active Memory Mirroring | Spare Cores (on DCMs), Active Memory Mirroring | Chipkill Memory, Active Memory Mirroring, Dynamic Processor Deallocation |
| AI Acceleration | Optional IBM Spyre™ I/O Drawer | Optional IBM Spyre™ I/O Drawer | In-core MMA | In-core MMA | In-core MMA |
| Upgrade Path | In-place from Power E1080 (preserves serial number) | In-place from Power E1050 (preserves serial number) | Workload migration | Workload migration | Workload migration |
| Data Sheet | Download the Data Sheet | Download the Data Sheet | Download the Data Sheet | ||
| Request pricing | Request pricing | Request pricing | Request pricing | Request pricing |
UPGRADE YOUR REMOTE AND BRANCH INFRASTRUCTURE WITH THE IBM POWER S1112
Why Choose Covenco for IBM Power?
At Covenco, we are a qualified IBM Gold Business Partner, with over 35 years of deep knowledge and experience in IBM systems. This long-standing expertise means we provide more than just a server – we deliver complete, end-to-end solutions tailored to your business.
Our team consists of technicians and engineers who are individually qualified in all aspects of IBM Power, including migration, replication, backup, and installation. For organisations running multiple S1112 deployments across branch or retail estates, we ensure each rollout is consistent, secure, and efficient, whether you are consolidating a complex legacy estate or extending Power11 to new edge locations.
From initial consultation to final delivery, our dedicated account managers help you specify the perfect system for your needs. We handle every detail, from licensing and support contracts to software integration, ensuring you receive a comprehensive solution that drives business success.
Upgrade your IBM Power systems with Covenco. We can run all the necessary IBM Power TCO calculations to establish precisely if an upgrade is the right decision for your organisation, right now.
We provide IBM Power Systems users with real-world, transparent calculations that go far beyond list prices. Get in touch with our team of IBM Power experts to find the perfect server configuration for you.
Other IBM Power11 Systems from Covenco
Discover more IBM Power11 Systems from Covenco
Get a Quote
Please complete this form to request a full proposal for your IBM Power11 S1112 System.
Our proposals include complete TCO reports, energy consumption modelling and competitive pricing.
